Power amplifiers mono — Msb Technology The M500 Mono Amplifier
Description, images, technical data and specifications

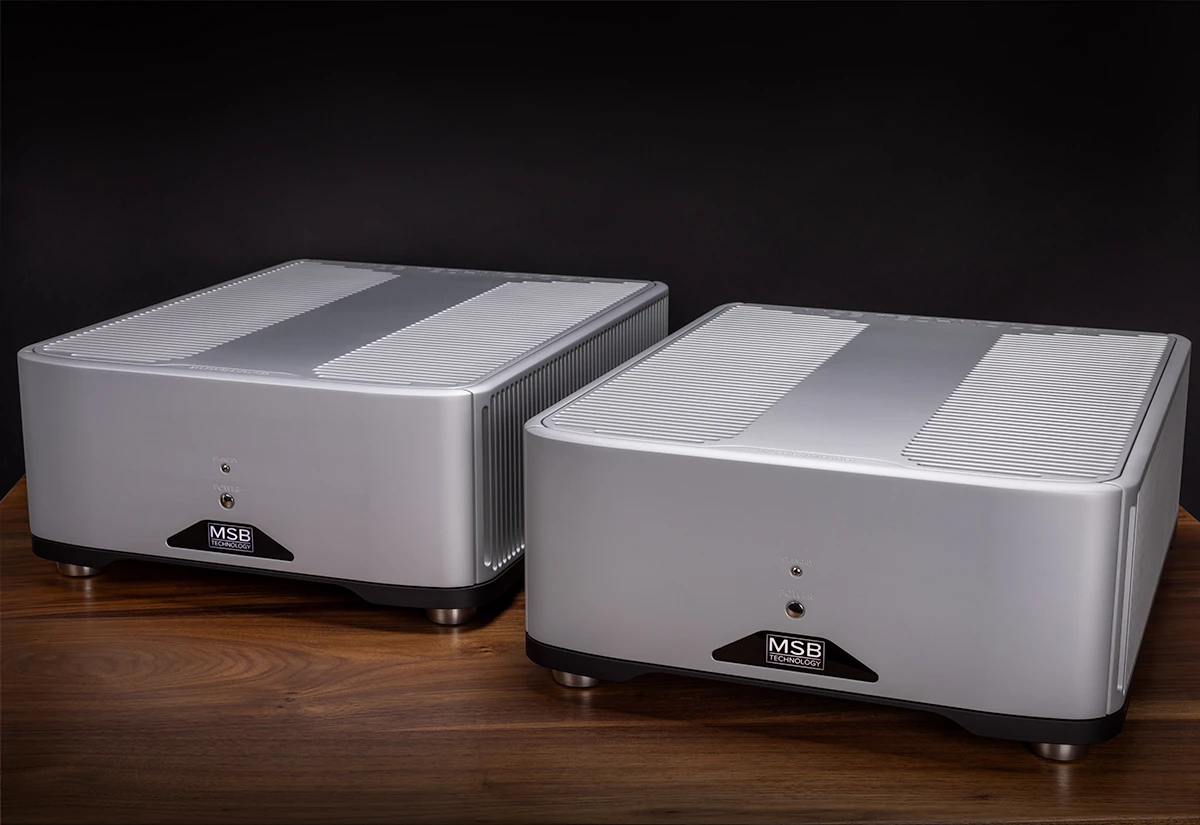

Msb Technology The M500 Mono Amplifier
Image source — © Msb Technology
The M500 features a discrete design with a Class A input stage with matched impedance. The result is a product with minimized signal reflections, input noise and distortion, as well as maximum power transmission and dynamic range in a zero negative feedback design. With special low-noise, high-current toroidal transformers and a robust high-current output buffer, the M500 delivers transparent, holographic, fatigue-free sound. All components have been carefully selected for their sound characteristics and durability, which ensures that your amplifier will last a long time.
Specifications
Model name
The M500 Mono Amplifier
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
75 / 300 / 1200
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
500
Output power (4Ω) (W)
1000
Gain (dBu)
28.4
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
150
Damping factor
N/A
Dimensions (mm)
381 × 590 × 267
Weight (kg)
61.25
