Power amplifiers mono — Vitus Audio SM-011
Description, images, technical data and specifications

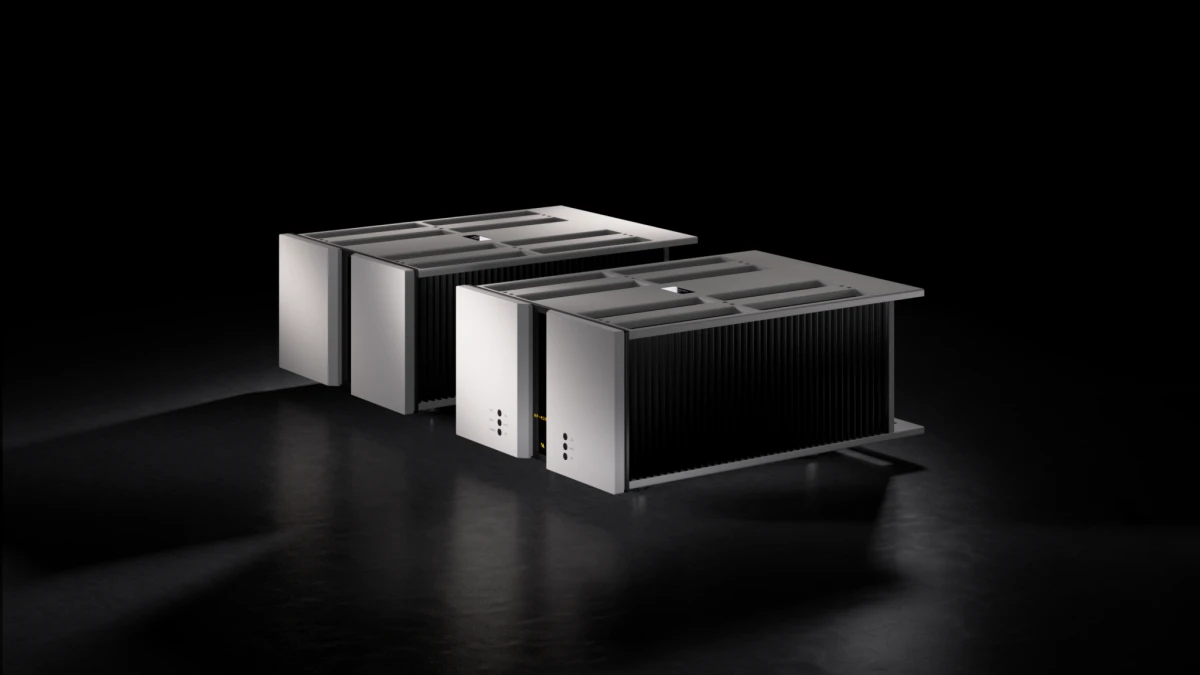

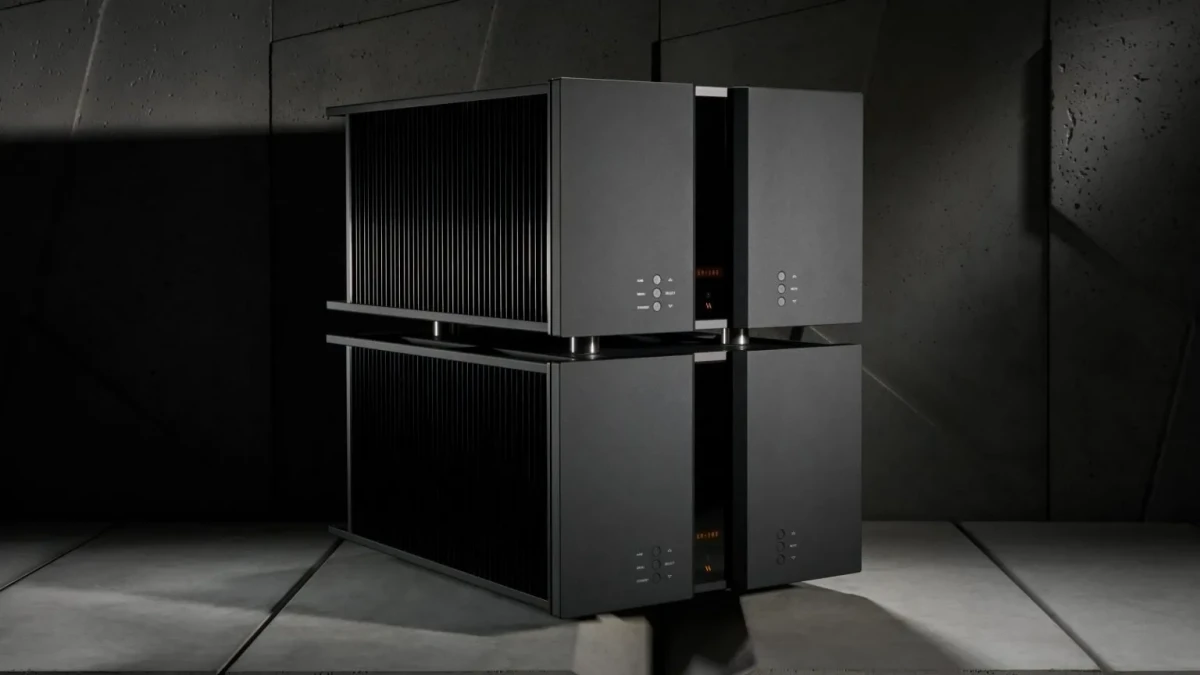

Vitus Audio SM-011
Image source — © Vitus Audio
The SM-011 builds on the success of the SIA-025. You get more of everything, more silence, higher resolution, more power, and better dynamics. The amplifiers are equipped with a special 1.4 kVA UI transformer with losses of <2%, a battery of 240,000 UF capacitors, are fully balanced from input to output and, as always, have zero global negative feedback.
Specifications
Model name
SM-011
Input sensitivity (mV)
2000
Input impedance (balanced) (Ω)
10 000
Input impedance (single-ended) (Ω)
10 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
0.075
Max current (A)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
400
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
800 000
Signal to Noise Ratio (dB)
>110
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.01
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
135 × 435 × 436
Weight (kg)
36
Official link
