Power amplifiers mono — Octave Audio Jubilee Mono Ultimate
Description, images, technical data and specifications

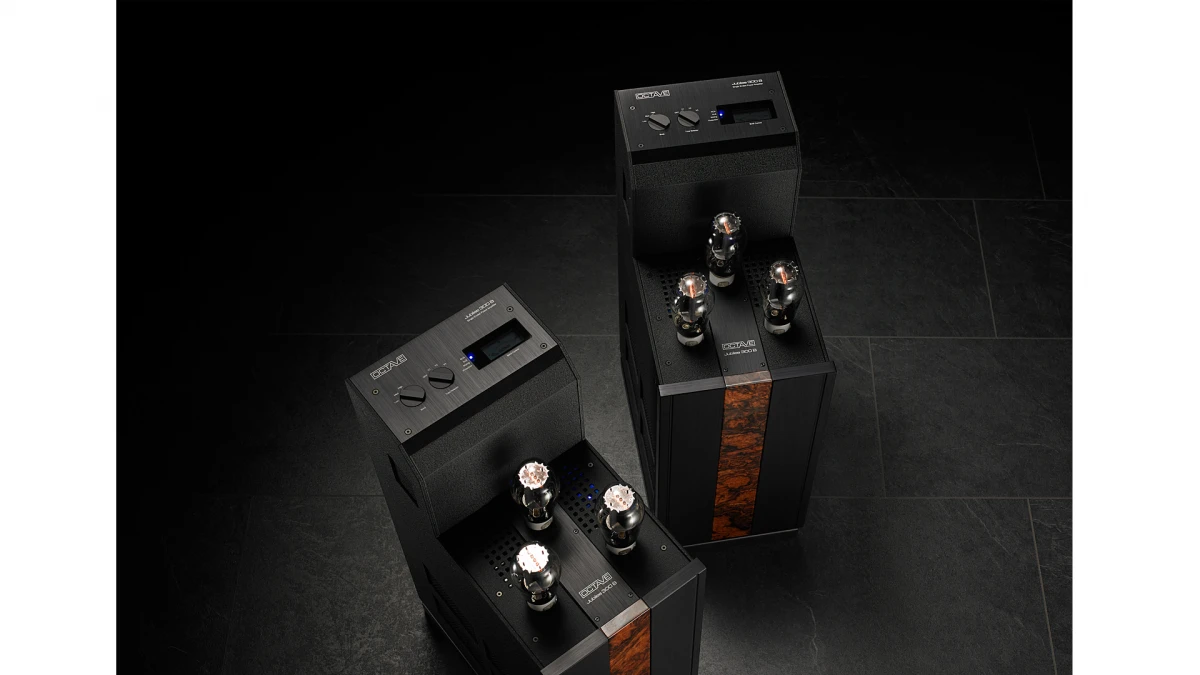

Octave Audio Jubilee Mono Ultimate
Image source — © Octave Audio
The Octave Jubilee Mono Ultimate reaches 225 watts of dynamic output power – the capabilities of large-scale power transformers and proprietary circuitry extend far beyond the traditional concepts of lamp technology. The device body is assembled from 8 mm aluminum, 2 mm steel and 50 mm X-MDF plates.
Specifications
Model name
Jubilee Mono Ultimate
Input sensitivity (mV)
1500
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
N/A
Output power (4Ω) (W)
440
Gain (dBu)
28
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
80 000
Signal to Noise Ratio (dB)
103
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.1
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
280 x 750 x 484
Weight (kg)
78
