Power amplifiers mono — Riviera Audio Labs AFM100 Special Edition

Description, images, technical data and specifications

Riviera Audio Labs AFM100 Special Edition
Image source — © Riviera Audio Labs

The Riviera Audio AFM100 Special Edition Power Amplifier is a Class A reference monoblock amplifier that combines all the key values of Riviera amplifiers. The AFM100SE amplifier also operates without feedback, has a hybrid architecture (lamps for voltage amplification, semiconductors for power) and a pure Class A mode. The novelty provides a power of 100 watts when operating on a load with a nominal resistance of 8 ohms in class A (200 watts for 4 ohms) and is able to control acoustic systems with the highest possible reliability.

Specifications

  • Model name

    AFM100 Special Edition

  • Input sensitivity (mV)

    220mVrms for 1W/8 ohm (2.83Vrms); 2.2Vrms for 100W/8 ohm (28.3Vrms)

  • Input impedance (balanced) (Ω)

    47 000

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    100

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    22

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    260 × 585 × 275

  • Weight (kg)

    35

  • Official link

    https://www.rivieralabs.com/en/afm100se/

Related content

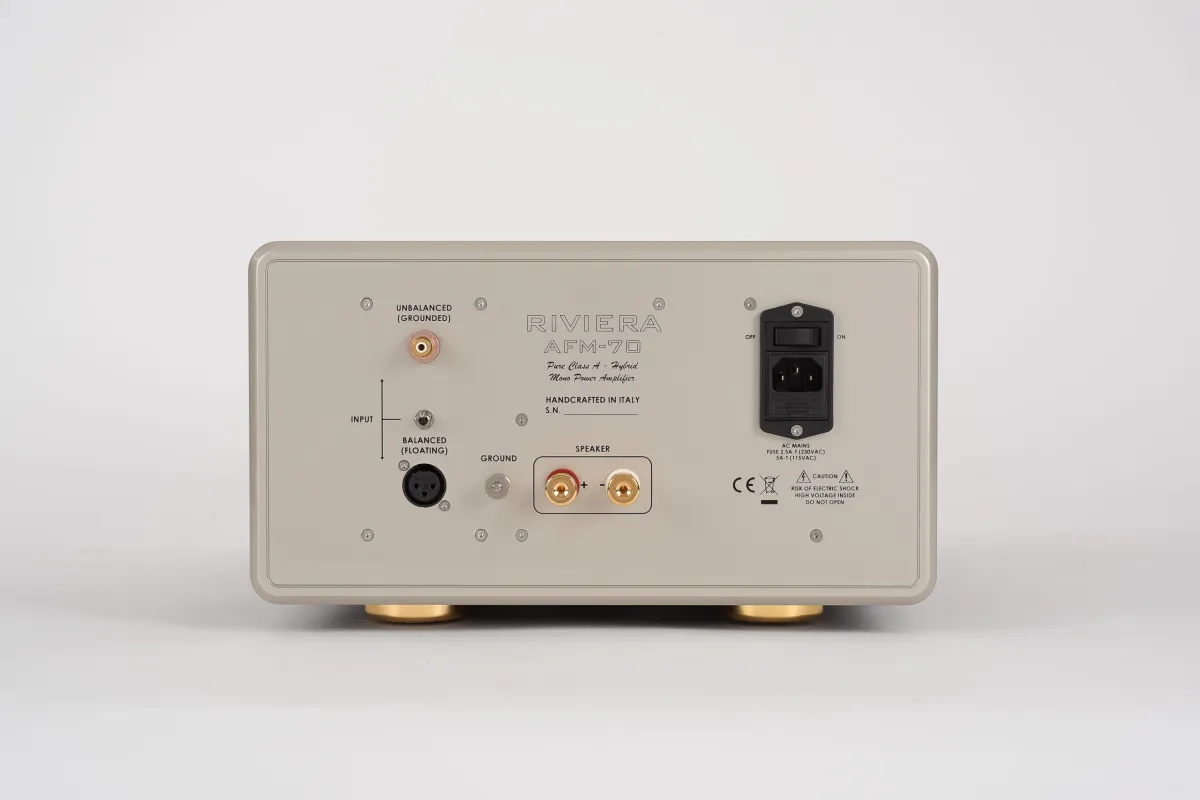

Riviera Audio Labs AFM70
