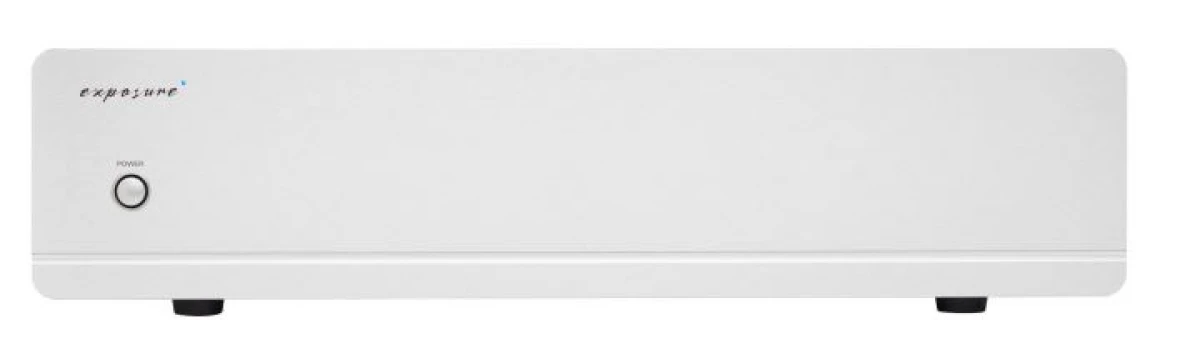

Exposure 5010 Mono Amplifier
Image source — © Exposure
The monaural power amplifier Exposure 5010 Mono Power Amplifier delivers a mighty bass kick, thanks to its doubled power compared to the similar monoblock of the 3010 series. It is traditionally equipped with a large custom-made 800-watt toroidal power transformer with a double rectifier and two 10,000 UF screw terminal capacitors, as well as eight high-power transistors in each channel.
Specifications
Model name
5010 Mono Amplifier
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
300
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
52 000
Signal to Noise Ratio (dB)
>120
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.015
Max power consumption (W)
800
Damping factor
N/A
Dimensions (mm)
115 x 440 x 300
Weight (kg)
14
Official link
