Creek Audio Voyage i20
Image source — © Creek Audio
The Voyage I20 operates in a modified AB gain class, the G class. It allows the powerful i20 circuits to fit into a thin case without overheating. The I20 monitors input and output signals, and the smart MOSFET circuit instantly switches to a higher voltage if needed. The analog preamp uses a high-quality resistor on the MUSES ladder attenuator, which provides accurate volume with extremely low distortion.
Specifications
Model name
Voyage i20
Type
Integrated Amplifier with DAC
Analog inputs (balanced)
1
Analog inputs (single-ended)
4
Input sensitivity (mV)
659
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
120
Output power (4Ω) (W)
240
Gain (dBu)
33.4
Frequency response low +/- 3dB (Hz)
1
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
102
Total Harmonic Distortion + Noise (%)
<0.002
Damping factor
N/A
Dimensions (mm)
430 x 80 x 350
Weight (kg)
9
Official link
More components
Integrated amplifiers

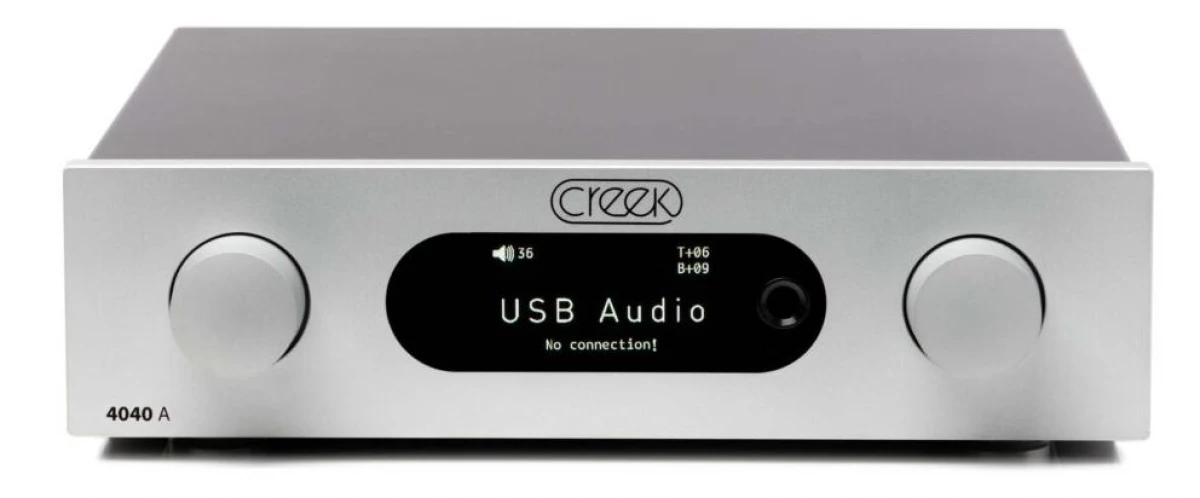

Creek Audio 4040 A
