Hifiverse

Integrated amplifiers — Pro-Ject Uni Box S3

Description, images, technical data and specifications

Pro-Ject Uni Box S3
Image source — © Pro-Ject

The Pro-Ject Uni Box S3 is a versatile compact integrated amplifier with state—of-the-art streaming based on the WiiM OS™ platform. It offers up to 40 watts of power per channel (4 ohms), fully analog pre- and power supply for live, dynamic sound, without digitizing vinyl. The device supports multiple inputs: 3 analog, 3 digital (including TV ARC) and WiFi/Bluetooth with high resolution up to 24 bit/192 kHz via Cirrus Logic CS4344 DAC.

Specifications

  • Model name

    Uni Box S3

  • Type

    Integrated amplifier with modern streaming

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    2 + 1 (Phono MM)

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    23

  • Output power (4Ω) (W)

    40

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    94

  • Total Harmonic Distortion + Noise (%)

    < 0,05

  • Damping factor

    N/A

  • Dimensions (mm)

    206 x 55 x 153

  • Weight (kg)

    1.1

  • Official link

    https://www.project-audio.com/en/product/uni-box-s3/

Pro-Ject Stereo Box DS3

More components

  • Stereo Box DS3

    Integrated amplifiers

    Pro-Ject Stereo Box DS3

    The Pro-Ject Stereo Box DS3 is implemented in a dual mono concept. The output amplification stages are capable of developing up to 150 watts when operating on a load with a nominal resistance of 8 ohms. There is also a high-quality headphone amplifier, offering an impressive 450 MW of power for headphones with a resistance of 32 ohms.

  • MaiA DS3

    Integrated amplifiers

    Pro-Ject MaiA DS3

    ProJect MaiA DS3 is a new generation integrated amplifier with amazing sound and advanced technology. The device develops a power of up to 140 watts per channel and is compatible with floor and shelf acoustics of various brands. Up to 9 signal sources can be connected to the amplifier, including a vinyl player, a computer via USB, and mobile gadgets via Bluetooth.

  • Stereo Box S3 BT

    Integrated amplifiers

    Pro-Ject Stereo Box S3 BT

    To connect the sources, the novelty offers two analog inputs on RCA connectors. There is even a pre-amp output implemented on the 3.5mm mini jack connector. The amplifier develops 21 Watts in each channel when operating on a load with a nominal resistance of 8 ohms and 40 Watts at a load of 4 ohms. High-quality screw terminals are provided for connecting acoustic systems.

  • MaiA S3

    Integrated amplifiers

    Pro-Ject MaiA S3

    The Pro-Ject Media S3 integrated amplifier impresses at first glance thanks to its premium aluminum housing. It not only gives the model an interesting look, but also allows you to eliminate interference and make the operation of the MaiA S3 more stable. The amplifier's circuitry is based on the dual mono principle. A motorized Alps potentiometer is used as a volume control.

  • Stereo Box E

    Integrated amplifiers

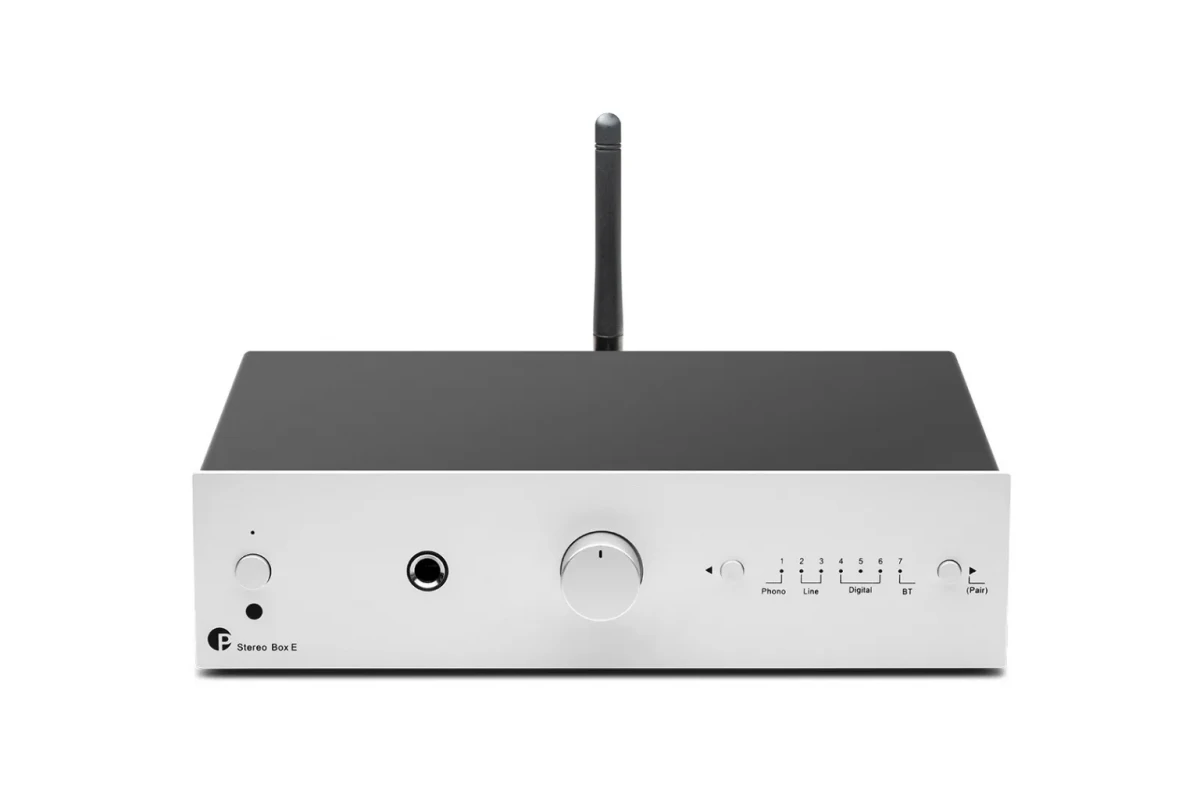

    Pro-Ject Stereo Box E
