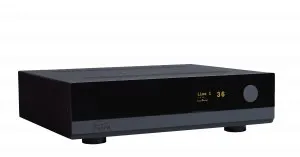

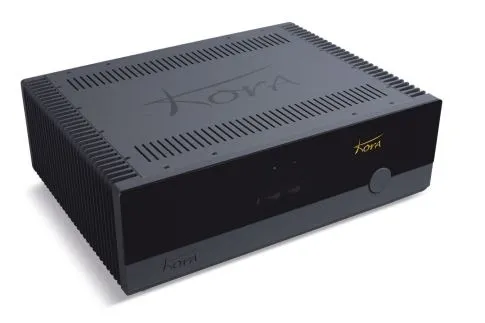

Integrated amplifiers — Kora TB400

Specifications

• Model name

  TB400

• Type

  Integrated Amplifier

• Analog inputs (balanced)

  N/A

• Analog inputs (single-ended)

  4

• Input sensitivity (mV)

  1000

• Input impedance (balanced) (Ω)

  N/A

• Input impedance (single-ended) (Ω)

  15 000

• Output impedance (balanced) (Ω)

  N/A

• Output impedance (single-ended) (Ω)

  2000

• D/A conversion

  N/A

• Phono MM/MC current-sensing input impedance (Ω)

  N/A

• Output power (8Ω) (W)

  2 x 200

• Output power (4Ω) (W)

  2 x 360

• Gain (dBu)

  N/A

• Frequency response low +/- 3dB (Hz)

  20

• Frequency response high +/- 3dB (Hz)

  20 000

• Signal to Noise Ratio (dB)

  N/A

• Total Harmonic Distortion + Noise (%)

  N/A

• Damping factor

  N/A

• Dimensions (mm)

  130 x 420 x 420

• Weight (kg)

  27

• Official link

  https://kora.fr/wp-content/uploads/2022/04/220419_KORA_TB400_data_sheet_EN.pdf
