Integrated amplifiers — Vincent SV-700
Description, images, technical data and specifications

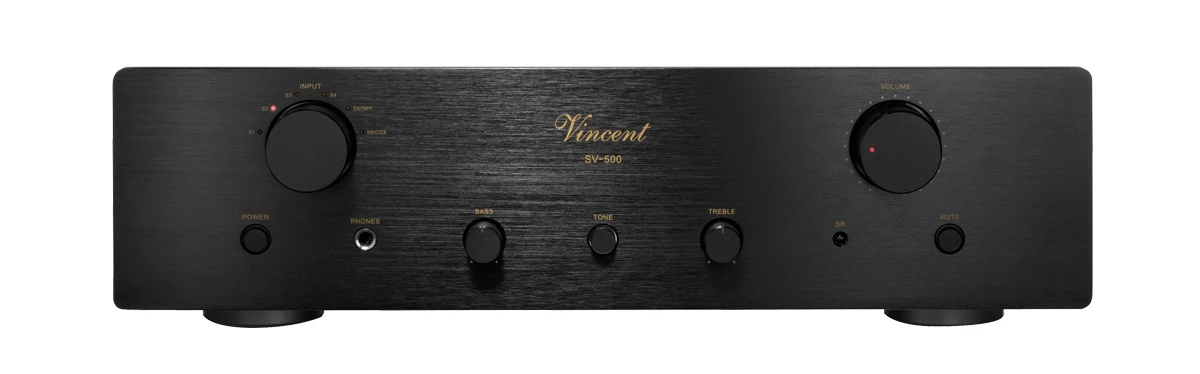

Vincent SV-700
Image source — © Vincent
The Vincent SV-700 stereo amplifier allows sound sources that do not have a powerful enough DAC to maximize their capabilities. By introducing symmetrical inputs, the manufacturer ensured the playback of musical compositions with special sophistication and completeness. During audio playback, experts note the richness of the vocal parts, as well as the consonance and volume of instrumental compositions, including those played on the piano.
Specifications
Model name
SV-700
Type
Integrated Amplifier with DAC
Analog inputs (balanced)
1
Analog inputs (single-ended)
3
Input sensitivity (mV)
350
Input impedance (balanced) (Ω)
47 000
Input impedance (single-ended) (Ω)
47 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
100
Output power (4Ω) (W)
160
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>90
Total Harmonic Distortion + Noise (%)
<0.1
Damping factor
N/A
Dimensions (mm)
430 x 192 x 430
Weight (kg)
24.2
Official link
