Integrated amplifiers — Vincent SV-500 MK

Name: SV-500 MK
Brand: Vincent
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Vincent SV-500 MK
Image source — © Vincent

Vincent Audio has updated the popular hybrid integrated amplifier Vincent Audio SV-500, which was named Vincent Audio SV-500 MK. The new product is equipped with a new DAC chip that supports 32-bit / 384 kHz resolution, a Bluetooth module and an HDMI ARC input. Like its predecessor, the Vincent Audio SV-500 MK input stages are implemented on tubes, and the output stages are transistor ones, which allows it to develop a power of 50 watts when working on a load with a nominal resistance of 8 ohms and 80 watts for 4 ohms in each of the channels. The switching arsenal of the SV-500 MK integrated amplifier from Vincent Audio includes two analog linear unbalanced inputs on RCA connectors, digital optical and coaxial ports, an HDMI ARC input. There are both linear and variable preamp outputs.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
SV-500 MK
Type
Integrated amplifier with DAC
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
2
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
2 x 50
Output power (4Ω) (W)
2 x 80
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20000
Signal to Noise Ratio (dB)
90
Total Harmonic Distortion + Noise (%)
0.1
Damping factor
N/A
Dimensions (mm)
440 x 100 x 355
Weight (kg)
10
Official link
ttps://www.vincent-tac.de/en/product-types/integrated-amplifiers/sv-500.htm

More components

Integrated amplifiers
Vincent SV-500
The SV-500 is equipped with four analog inputs (RCA connectors) and two digital inputs (RCA and optical). There is also an adjustable preamp output (for example, for connecting a subwoofer) and a recording output. The cool look is successfully complemented by a stylish remote control with an aluminum case.
Integrated amplifiers
Vincent SV-228
The Vincent SV-228 integrated amplifier with a volume level meter built into the front panel will replace the SV-227 MK model. The hybrid design implies the simultaneous use of 6N4, ECC82 lamps and transistors in the output stage.
Integrated amplifiers
Vincent SV-200
The SV-200 model is the "younger brother" of the SV-237MK and SV-700 integrated amplifiers. Despite the compact design, the company's engineers made only a few compromises. It retains high definition and low noise levels. The sound signal is processed by two 6N1 lamps.
Integrated amplifiers
Vincent SV-237MKII
The SV-237 MK II uses hybrid amplification technology. For Vincent, this solution means "the best of both worlds." Two 6N1P lamps operate in the pre-amplification section, giving the sound naturalness and warmth, while the power amplifier section uses 4 transistors, providing excellent dynamics and output power of up to 250 Watts (RMS) per channel.
Integrated amplifiers

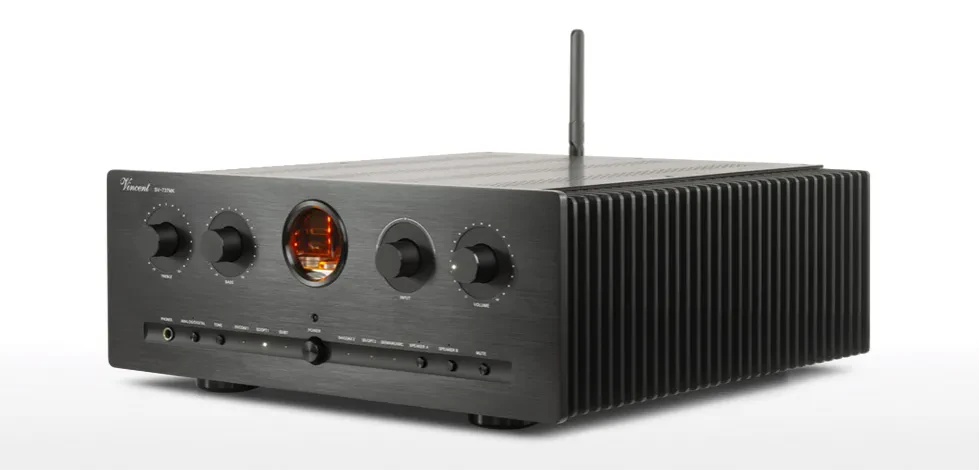

Vincent SV-737
