Integrated amplifiers — Leak Stereo 230
Description, images, technical data and specifications
Leak Stereo 230
Image source — © Leak
The LEAK STEREO 230 integrated amplifier can be connected to a variety of analog and digital sources thanks to its rich switching arsenal. The MM phono corrector allows direct connection of record players with a movable magnet (MM) head.
Specifications
Model name
Stereo 230
Type
Integrated Amplifier with DAC and Phono
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
2 + 1 (Phono)
Input sensitivity (mV)
480 + 4.1 (phono MM)
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
10 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
47 000
Output power (8Ω) (W)
75
Output power (4Ω) (W)
115
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>109
Total Harmonic Distortion + Noise (%)
0.003
Damping factor
N/A
Dimensions (mm)
325 x 145 x 426
Weight (kg)
12.7
Official link
More components
Integrated amplifiers

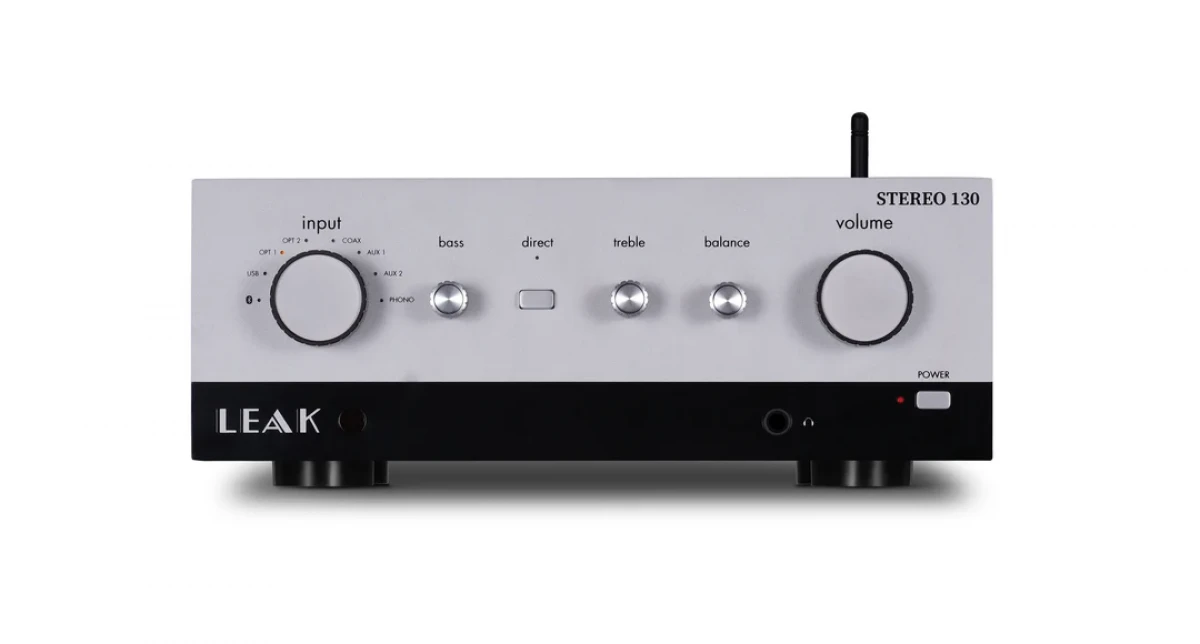

Leak Stereo 130
