Integrated amplifiers — Marantz MODEL 10

Description, images, technical data and specifications

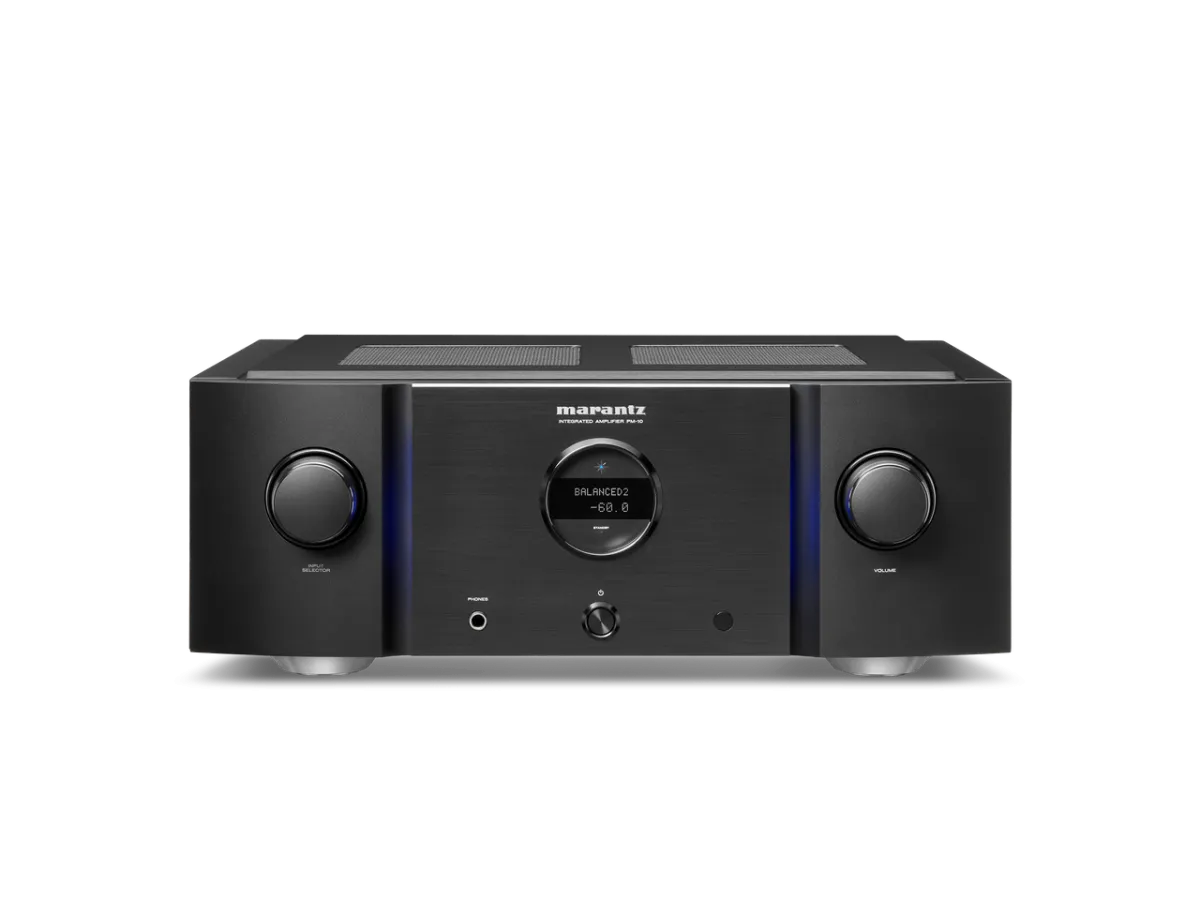

Marantz MODEL 10
Image source — © Marantz

The Marantz MODEL 10 is a powerful Class D integrated amplifier with Purifi technology, 2×250 watts (8 ohms), a balanced dual mono design and a proprietary MM/MC phono corrector. The elegant aluminum body, OLED display and VU meters create a premium look and clear, detailed sound with minimal distortion (0.005%). Ideal for high-end audio systems.

Specifications

  • Model name

    MODEL 10

  • Type

    Integrated Amplifier with Phono

  • Analog inputs (balanced)

    2

  • Analog inputs (single-ended)

    4

  • Input sensitivity (mV)

    1580 (RCA), 3600 (XLR)

  • Input impedance (balanced) (Ω)

    15 000

  • Input impedance (single-ended) (Ω)

    41 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    250 + 250

  • Output power (4Ω) (W)

    500 + 500

  • Gain (dBu)

    29 (RCA), 24 (XLR)

  • Frequency response low +/- 3dB (Hz)

    5

  • Frequency response high +/- 3dB (Hz)

    60 000

  • Signal to Noise Ratio (dB)

    122

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Damping factor

    500

  • Dimensions (mm)

    440 × 192 × 473

  • Weight (kg)

    33.7

  • Official link

    https://www.marantz.com/en-us/product/amplifiers/model-10/300991.html?srsltid=AfmBOop83MF3nLFXNH6fcle42Do1-c7N_0gABr0Lezg0uTCJmY-0GDue
