Integrated amplifiers — Luxman L-507uXII

Description, images, technical data and specifications

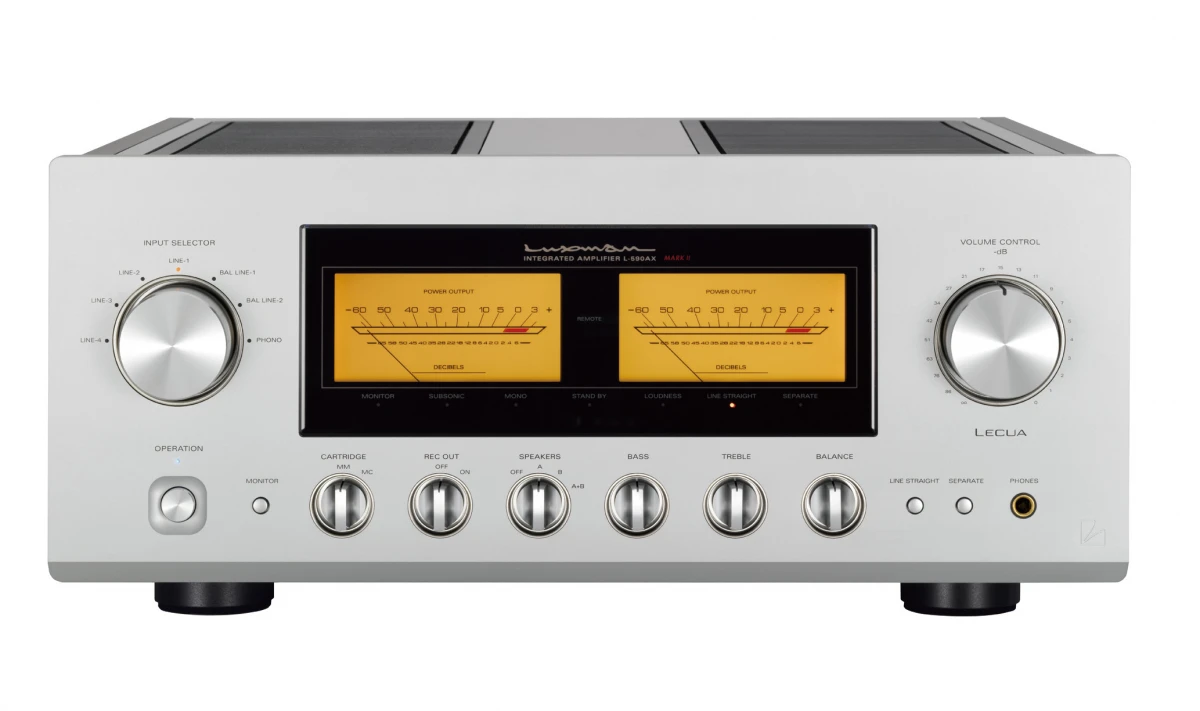

Luxman L-507uXII
Image source — © Luxman

The Luxman L-507UX Mark II is equipped with a new LECUA 1000 attenuator and a buffer circuit on discrete elements in the output stage of the preamplifier, and is also equipped with a new version (Version 4.0) of the LUXMAN ODNF feedback circuit (with distortion–only Negative Feedback).

Specifications

  • Model name

    L-507uXII

  • Type

    Integrated Amplifier with Phono

  • Analog inputs (balanced)

    2

  • Analog inputs (single-ended)

    4 + 1 (Phono)

  • Input sensitivity (mV)

    180

  • Input impedance (balanced) (Ω)

    55 000

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    47 000 (MM) + 100 (MC)

  • Output power (8Ω) (W)

    110

  • Output power (4Ω) (W)

    210

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    100 000

  • Signal to Noise Ratio (dB)

    105

  • Total Harmonic Distortion + Noise (%)

    0.08

  • Damping factor

    260

  • Dimensions (mm)

    440 x 178 x 454

  • Weight (kg)

    25

  • Official link

    https://www.luxman.com/product/detail.php?id=4
