Integrated amplifiers — Rega io

Description, images, technical data and specifications

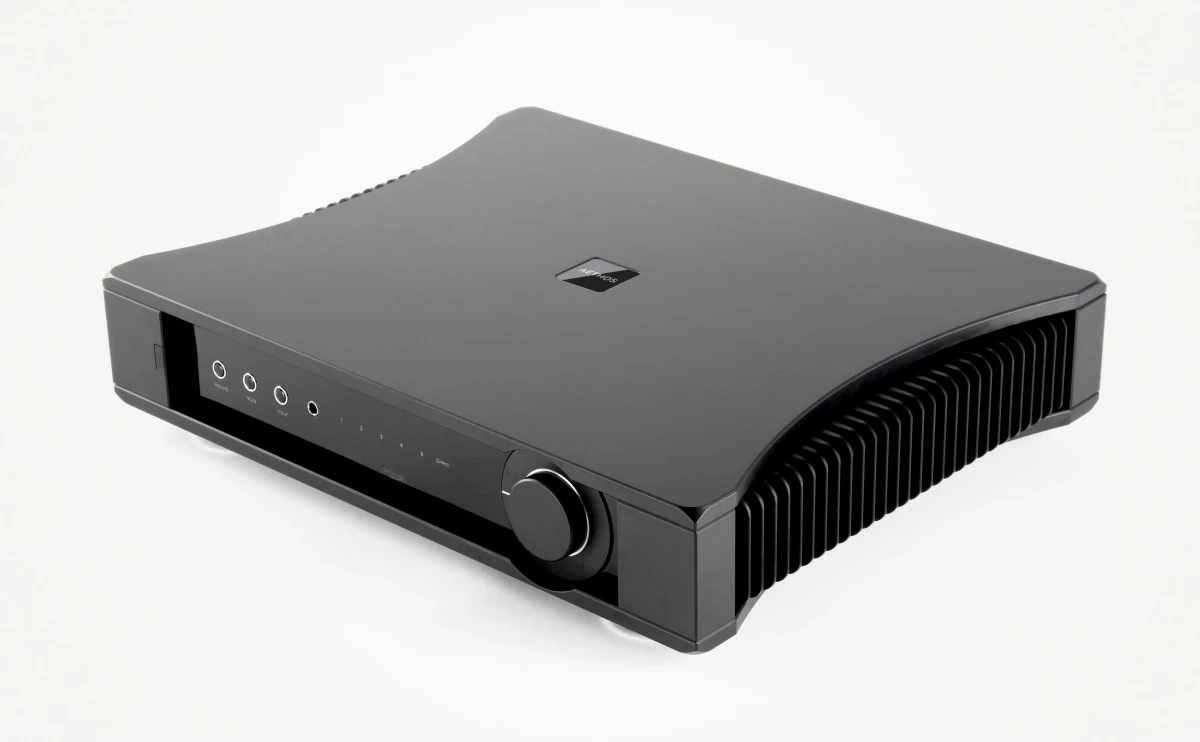

Rega io
Image source — © Rega

This small device measures only 180 x 290 x 68 mm and weighs 2.9 kilograms, but it develops a power output of up to 30 watts per channel. Moreover, it is even equipped with a built-in phono corrector for heads with a movable magnet, which is logical given the company's specialization in the production of vinyl turntables.

Specifications

  • Model name

    io

  • Type

    Integrated Amplifier with Phono

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    2 + 1 (Phono)

  • Input sensitivity (mV)

    210 + 2.1 (Phono)

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    47 000

  • Output power (8Ω) (W)

    30

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    12

  • Frequency response high +/- 3dB (Hz)

    43 000

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    180 x 68 x 290

  • Weight (kg)

    2.9

  • Official link

    https://www.rega.co.uk/products/io
