Integrated amplifiers — PrimaLuna EVO 300
Description, images, technical data and specifications

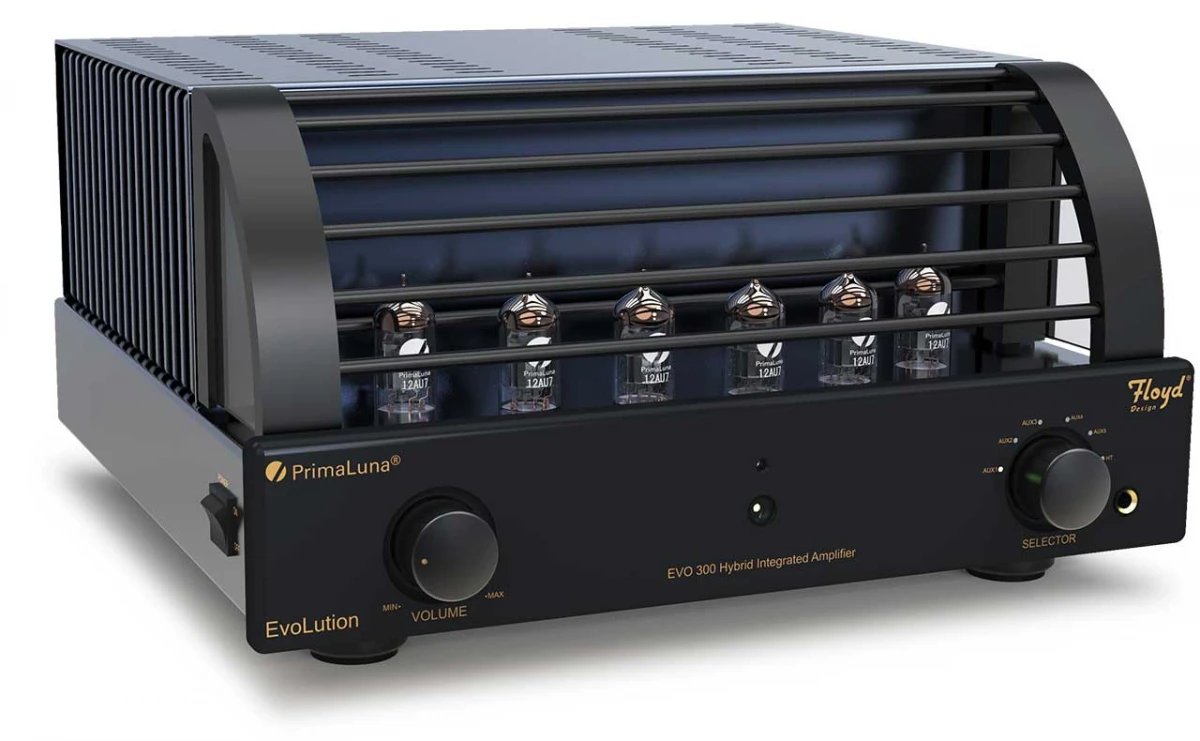

PrimaLuna EVO 300
Image source — © PrimaLuna
The PrimaLuna EVO 300 Integrated is the second oldest integrated amplifier, producing 2 x 24 W or 2 x 42 W in ultraline mode on EL34 lamps.
Specifications
Model name
EVO 300
Type
Integrated Amplifier
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
5
Input sensitivity (mV)
270 / 285 / 290 / 300
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
42 / 43 / 45 / 48
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
8
Frequency response high +/- 3dB (Hz)
75 000
Signal to Noise Ratio (dB)
86 / 87 / 87 / 87
Total Harmonic Distortion + Noise (%)
<0.2 @ 1W
Damping factor
N/A
Dimensions (mm)
405 x 385 x 205
Weight (kg)
31
