Integrated amplifiers — Trafomatic Audio Elegance Evolution

Name: Elegance Evolution
Brand: Trafomatic Audio
Rating: 100 (1 reviews)

Description, images, technical data and specifications

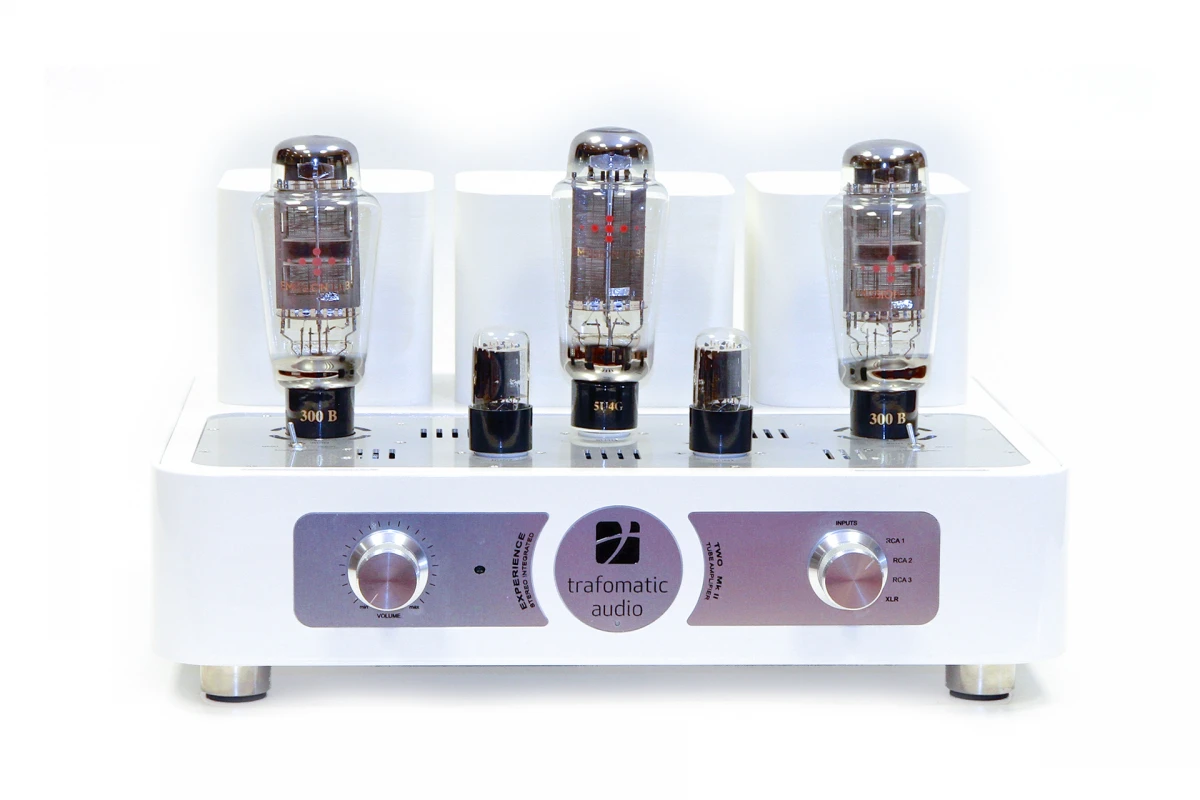

Trafomatic Audio Elegance Evolution
Image source — © Trafomatic Audio

The Trafomatic Audio Evolution Elegance push-pull integrated amplifier has replaced the popular Experience Elegance model, which has earned many awards and sympathies. In terms of design and circuitry, this amplifier evolutionarily develops Trafomatic Audio's ideas of what a product should be for the High-end market. Starting with the advanced and uncompromising design of the power supply and ending with the high-margin output transformers (on a double C-shaped core), the Evolution Elegance full amplifier meets the most stringent requirements of even the picky audiophiles.

Specifications

Model name
Elegance Evolution
Type
Integrated Amplifier
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
4
Input sensitivity (mV)
800
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
2 x 50
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
45 000
Signal to Noise Ratio (dB)
84
Total Harmonic Distortion + Noise (%)
0.03
Damping factor
N/A
Dimensions (mm)
450 x 320 x 195
Weight (kg)
22
Official link
https://www.trafomaticaudio.com/products/elegance-evolution-integrated/?portfolioCats=13
