Integrated amplifiers — Cayin CS-55A

Description, images, technical data and specifications

Cayin CS-55A
Image source — © Cayin

Cayin CS‑55A is a tube integrated amplifier that reveals the depth and warmth of music sound. The elegant body and manual assembly emphasize the premium quality of the model, while thoughtful ergonomics make it convenient for everyday use. It is ideal for connoisseurs of analog sound and atmospheric listening.

Specifications

  • Model name

    CS-55A

  • Type

    Tube Integrated Amplifier

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    2

  • Input sensitivity (mV)

    280

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    100 000

  • Output impedance (balanced) (Ω)

    4, 8

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    20 (RMS Triode), 38 (RMS Ultralenar)

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    5

  • Frequency response high +/- 3dB (Hz)

    48 000

  • Signal to Noise Ratio (dB)

    92

  • Total Harmonic Distortion + Noise (%)

    1

  • Damping factor

    N/A

  • Dimensions (mm)

    360 x 334 x 180

  • Weight (kg)

    17

  • Official link

    https://en.cayin.cn/features/8/57/73/326.html

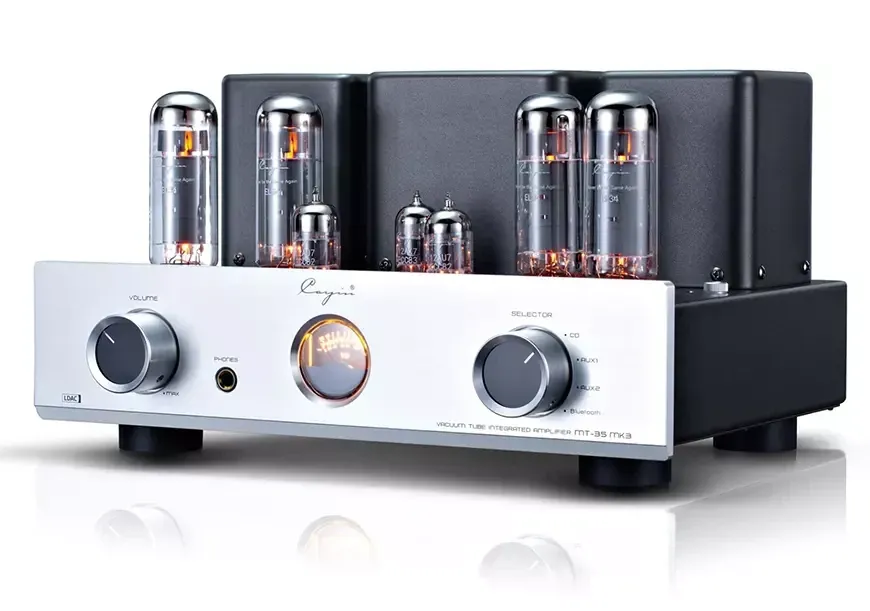

Cayin MT-35 MK3
