TEAC AX-505
Image source — © TEAC

TEAC AX-505 integrated stereo amplifier: nostalgic arrow indicators and Hypex Ncore output modules. The TEAC AX-505 integrated stereo amplifier can be easily hidden under a sheet of A4 paper — but at the same time it outputs 115 watts per channel using Ncore modules tuned by TEAC engineers from the Dutch company Hypex in the terminal cascade.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    AX-505

  • Type

    Integrated Amplifier

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    3

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    90

  • Output power (4Ω) (W)

    130

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    50 000

  • Signal to Noise Ratio (dB)

    110

  • Total Harmonic Distortion + Noise (%)

    0.002

  • Damping factor

    N/A

  • Dimensions (mm)

    290 × 81.2 × 264

  • Weight (kg)

    4.2

  • Official link

    https://teac.jp/int/product/ax-505/top

TEAC AI-303

More components

  • AI-303

    Integrated amplifiers

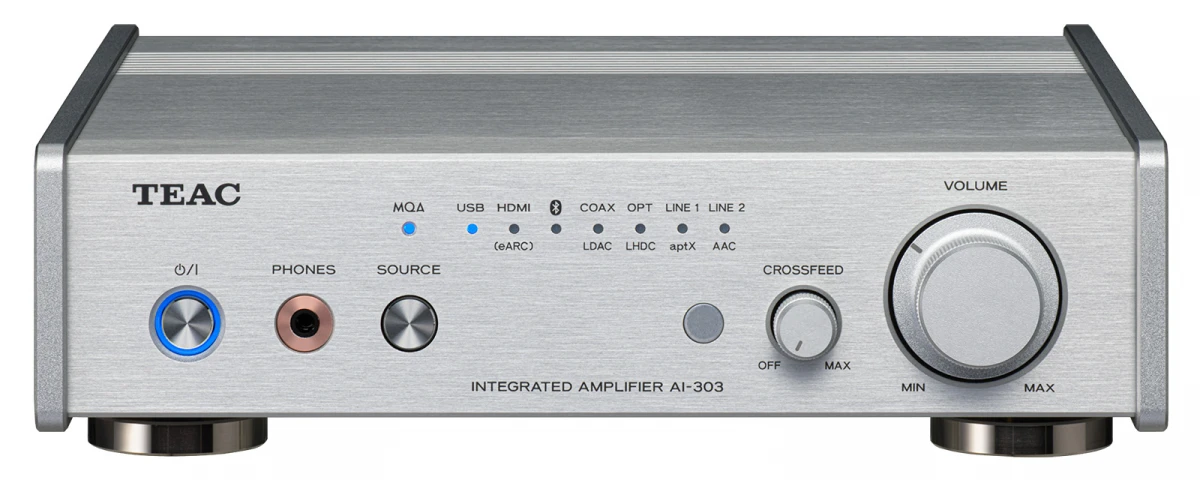

    TEAC AI-303
