Integrated amplifiers — SMSL AS400

Description, images, technical data and specifications

SMSL AS400
Image source — © SMSL

A DAC, MM phono preamplifier, preamplifier, headphone amplifier and powerful power amplifier are combined in one compact case (210×46×254 mm, weight 1.56 kg). The Cirrus Logic CS43131 chip is responsible for the sound quality. The built-in USB interface is built on the XMOS XU-316 circuit. The power amplifier based on Infineon MA5332MS modules produces 2×85 W at 8 Ohm or 2×165 W at 4 Ohm. There is a volume control on the NJW1194A (JRC) chip.

Specifications

  • Model name

    AS400

  • Type

    integrated amplifier with DAC and phonostage

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    N/A

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    2 x 85

  • Output power (4Ω) (W)

    2 x 165

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (%)

    0.003

  • Damping factor

    N/A

  • Dimensions (mm)

    210 × 46 × 254

  • Weight (kg)

    1.56

  • Official link

    https://www.smsl-audio.com/portal/product/detail/id/920.html

Related content

SMSL RAW-HA1

More components

  • RAW-HA1

    Integrated amplifiers

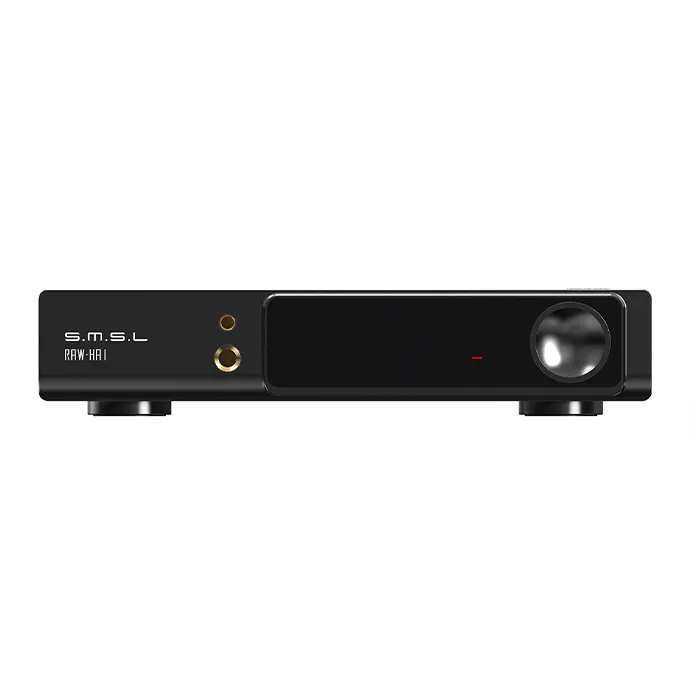

    SMSL RAW-HA1
