Integrated amplifiers — Wiim Amp Pro
Description, images, technical data and specifications

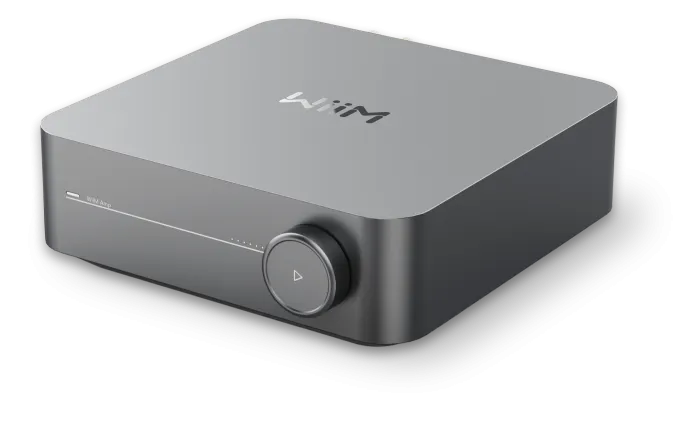

Wiim Amp Pro
Image source — © Wiim
The WiiM Amp Ultra network integrated amplifier is encased in an aluminum case and equipped with a 3.5-inch touchscreen. Despite its compact size (200 × 75 × 200 mm), the novelty is capable of developing a power of 100 watts when operating on a load with a nominal resistance of 8 ohms and 200 watts for 4 ohms in each of the channels, with "ultra-low distortion and rich audiophile-level sound." The WiiM Amp Ultra enhances the network capabilities of the Amp Pro model and complements them with the premium touchscreen display that debuted in the WiiM Ultra model.
Specifications
Model name
Amp Pro
Type
Integrated Amplifier with Streamer
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
2
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
60
Output power (4Ω) (W)
120
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Signal to Noise Ratio (dB)
120
Total Harmonic Distortion + Noise (%)
0.0005
Damping factor
N/A
Dimensions (mm)
217 × 190 × 66
Weight (kg)
2.08
