Integrated amplifiers — Exposure 5510
Description, images, technical data and specifications

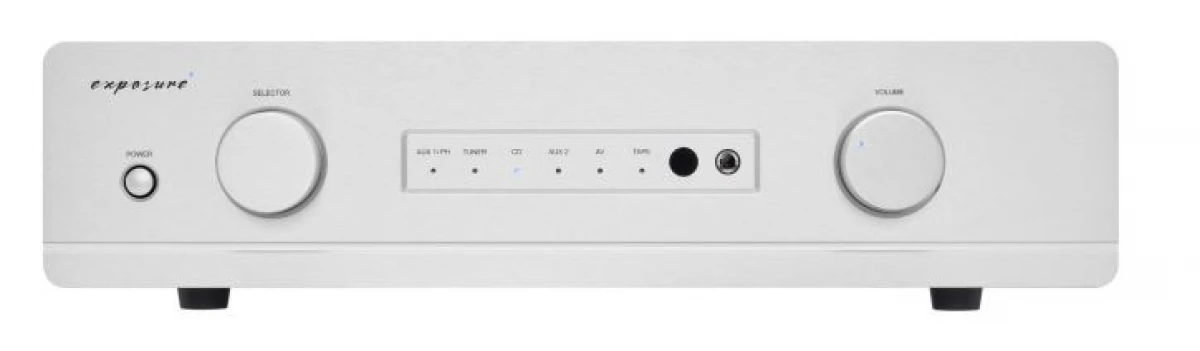

Exposure 5510
Image source — © Exposure
The Exposure 5510 integrated amplifier provides 120 watts of power for each of the two channels when operating on a load with a nominal resistance of 8 ohms at a frequency of 1 kHz. The operating frequency band specified by the manufacturer ranges from 20 Hz to 20 kHz (±0.5 dB). According to Exposure, listeners can expect deep, controlled bass, detailed midrange, and sparkling treble — regardless of the genre of music.
Specifications
Model name
5510
Type
Integrated Amplifier with DAC
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
6
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
120
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
100
Total Harmonic Distortion + Noise (%)
N/A
Damping factor
N/A
Dimensions (mm)
440 × 115 x 300
Weight (kg)
12
Official link
