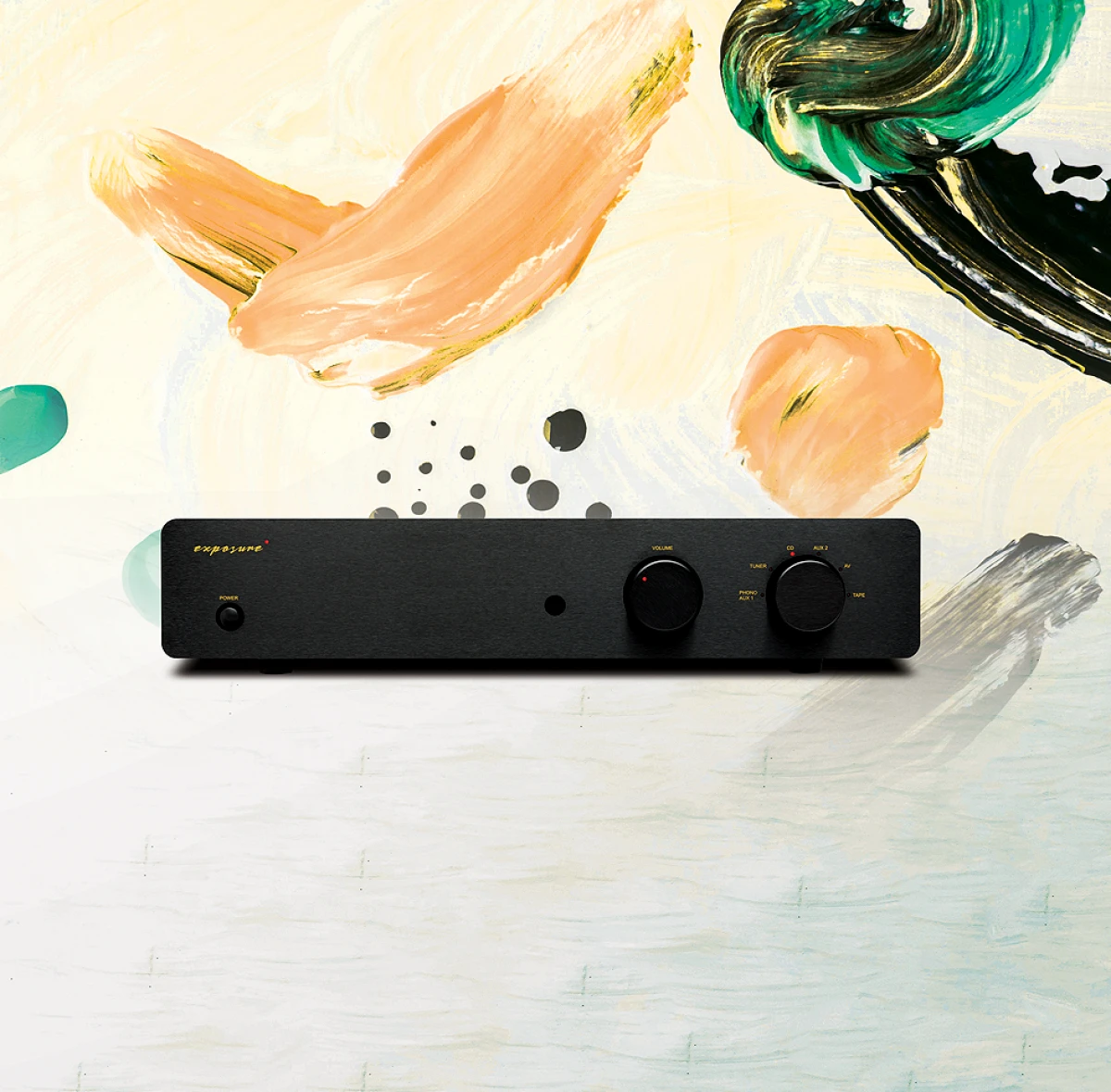

Exposure 3510 Integrated Amplifier
Image source — © Exposure
The device is equipped with a separate AV input. Users will be able to select a fixed or variable gain on the line output. This will come in handy when the 3510 model is used in conjunction with the front-facing acoustics of a home theater. To ensure a "low noise level on the power supply buses to the amplification stage," the device received a hybrid power supply circuit.
Specifications
Model name
3510 Integrated Amplifier
Type
Integrated Amplifier
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
N/A
Input sensitivity (mV)
250
Input impedance (balanced) (Ω)
17 000
Input impedance (single-ended) (Ω)
17 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
110
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>100
Total Harmonic Distortion + Noise (%)
<0.03
Damping factor
N/A
Dimensions (mm)
115 x 440 x 300
Weight (kg)
12
