Integrated amplifiers — Exposure 2510
Description, images, technical data and specifications

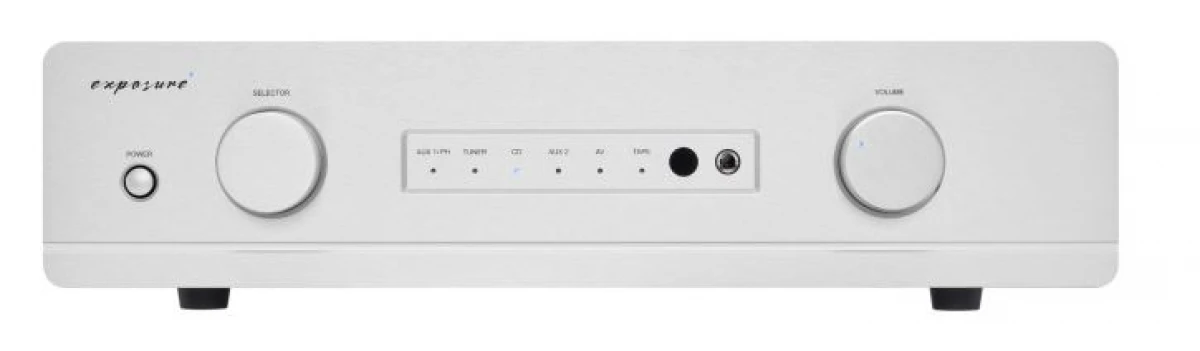

Exposure 2510
Image source — © Exposure
The Exposure 2510 Integrated integrated amplifier has a concise design, but it takes into account everything that can affect the sound quality. The device is equipped with a powerful custom-made toroidal transformer capable of delivering a total power of up to 200 watts. This is enough to supply power to the terminal amplifiers, which produce 75 watts per channel in the 8th. The amplifier is equipped with dual output terminals, providing for the possibility of connecting speakers according to the bi-wiring scheme.
Specifications
Model name
2510
Type
Integrated Amplifier with Phono
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
N/A
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
14 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
75
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>1000
Total Harmonic Distortion + Noise (%)
<0.015
Damping factor
N/A
Dimensions (mm)
90 x 440 x 300
Weight (kg)
6
